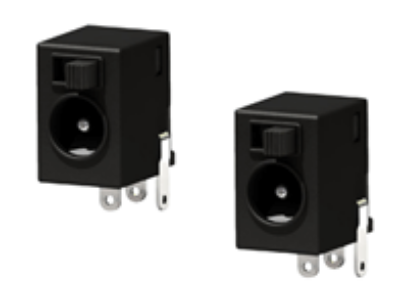

Product Type: DC Socket with Slide Switch
Specifications
Rated Current: DC 15V 2A, DC 16V 3A
Contact Resistance: Max. 30 mΩ.
Insulation Resistance: Min. 100 MΩ.
Mechanical Life: 30,000 cycles.
Materials
Base & Frame: Glass-filled Nylon 6/6, black.
Slider: Glass-filled Nylon 6/6, black.
Contact Springs: Copper alloy, silver-plated.
Terminals: Copper alloy, silver-plated.
Axle: Nickel-plated brass.
