Product Description

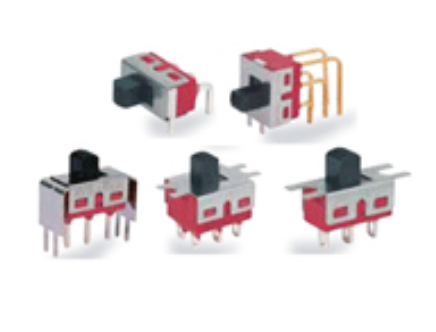

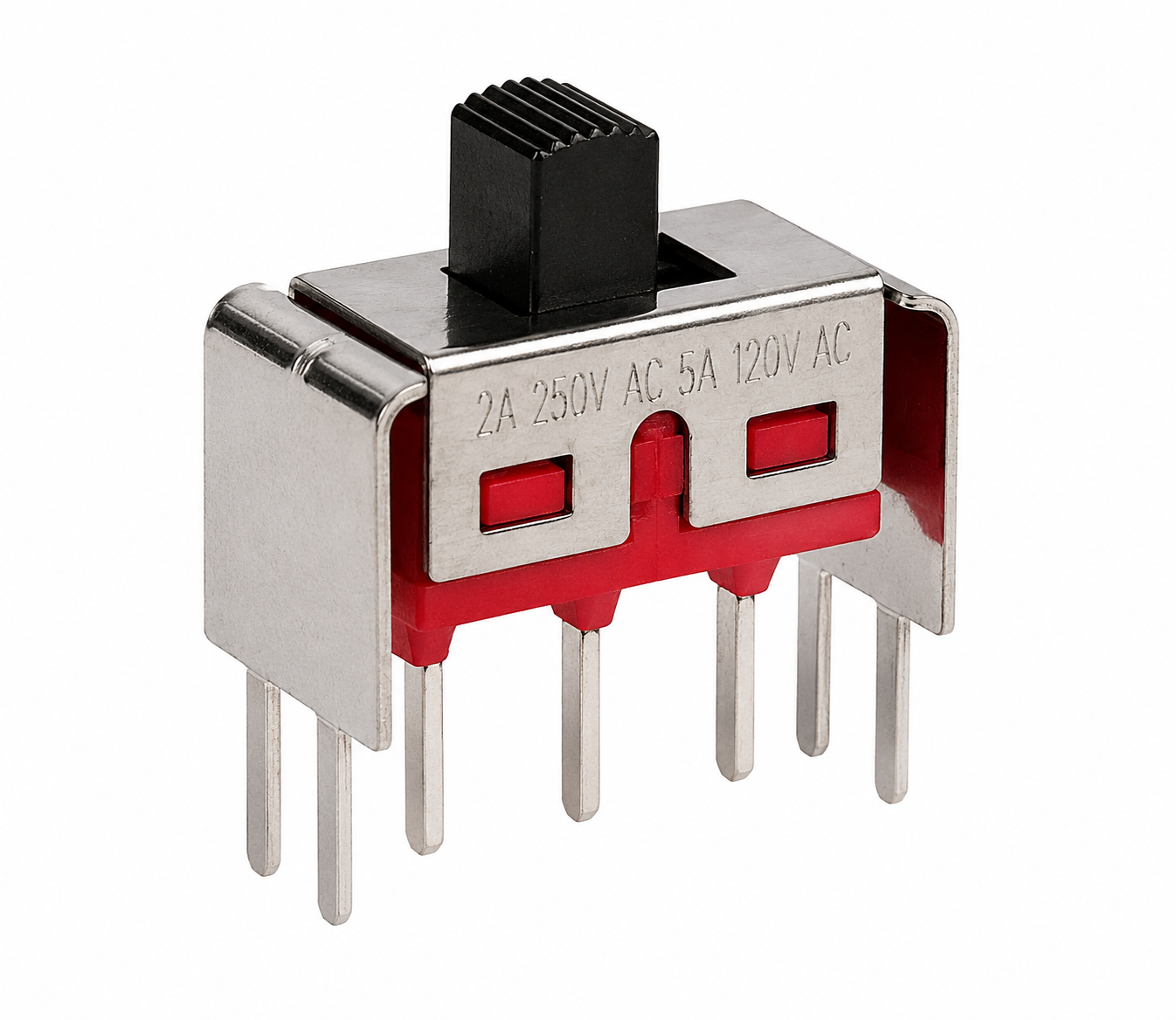

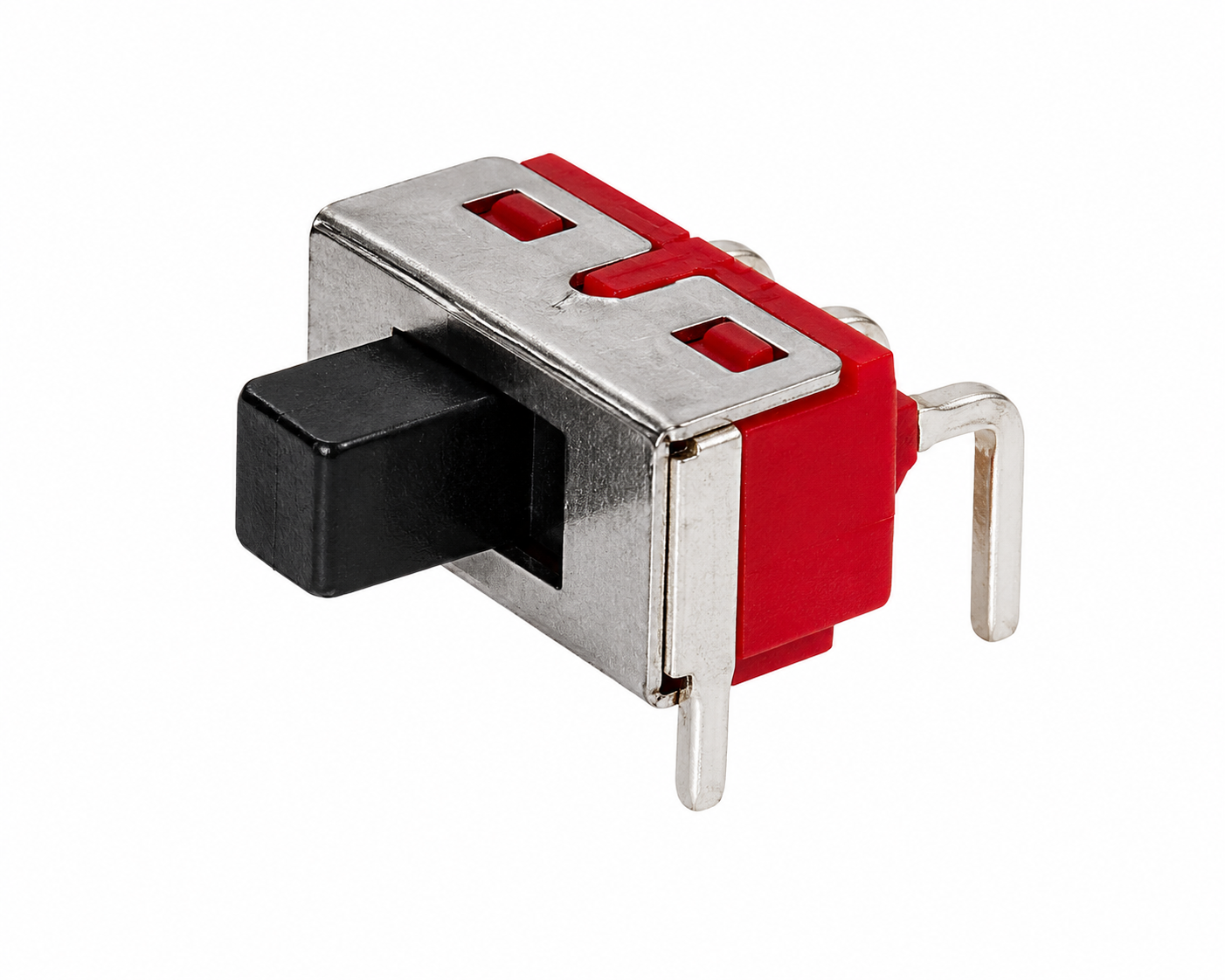

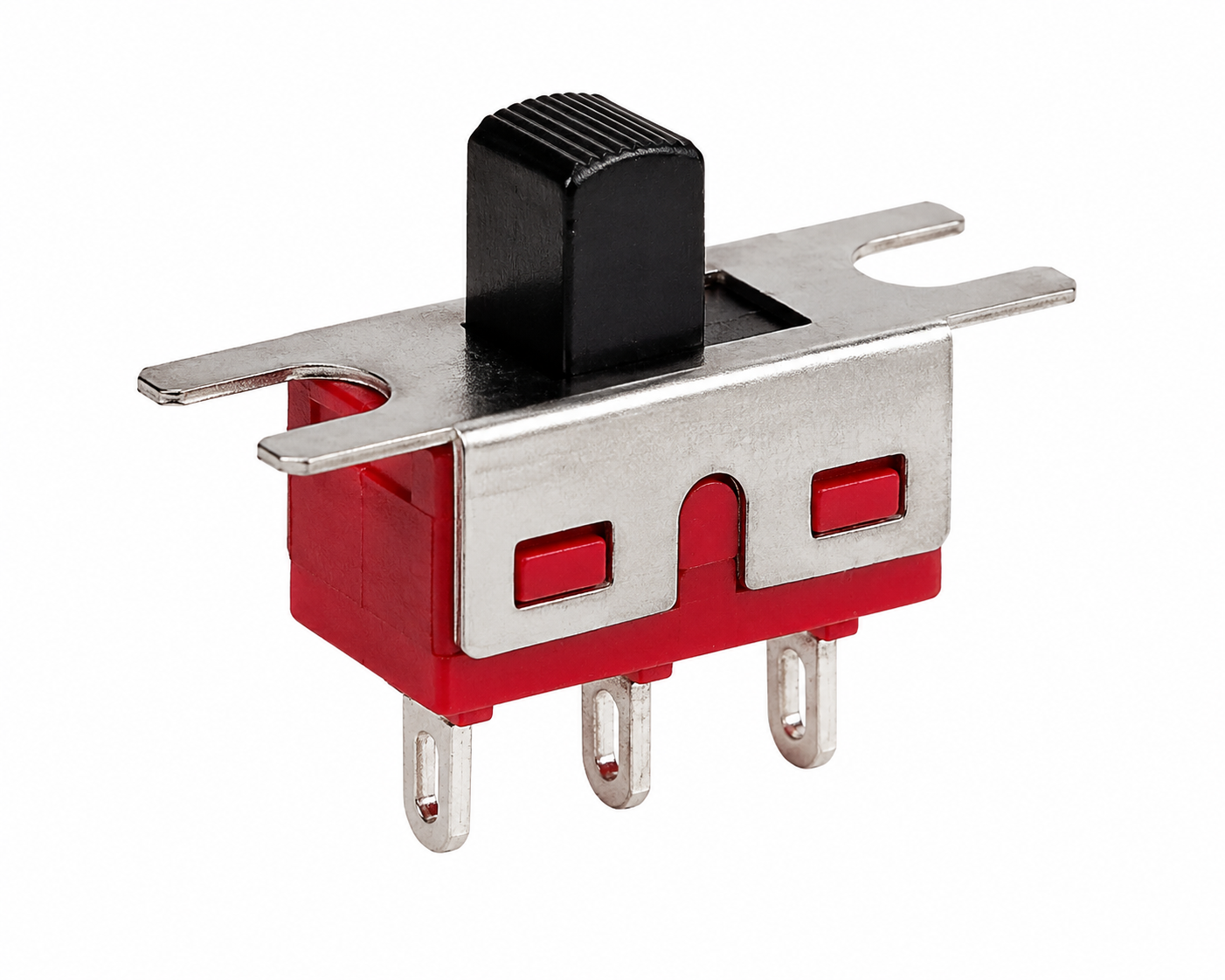

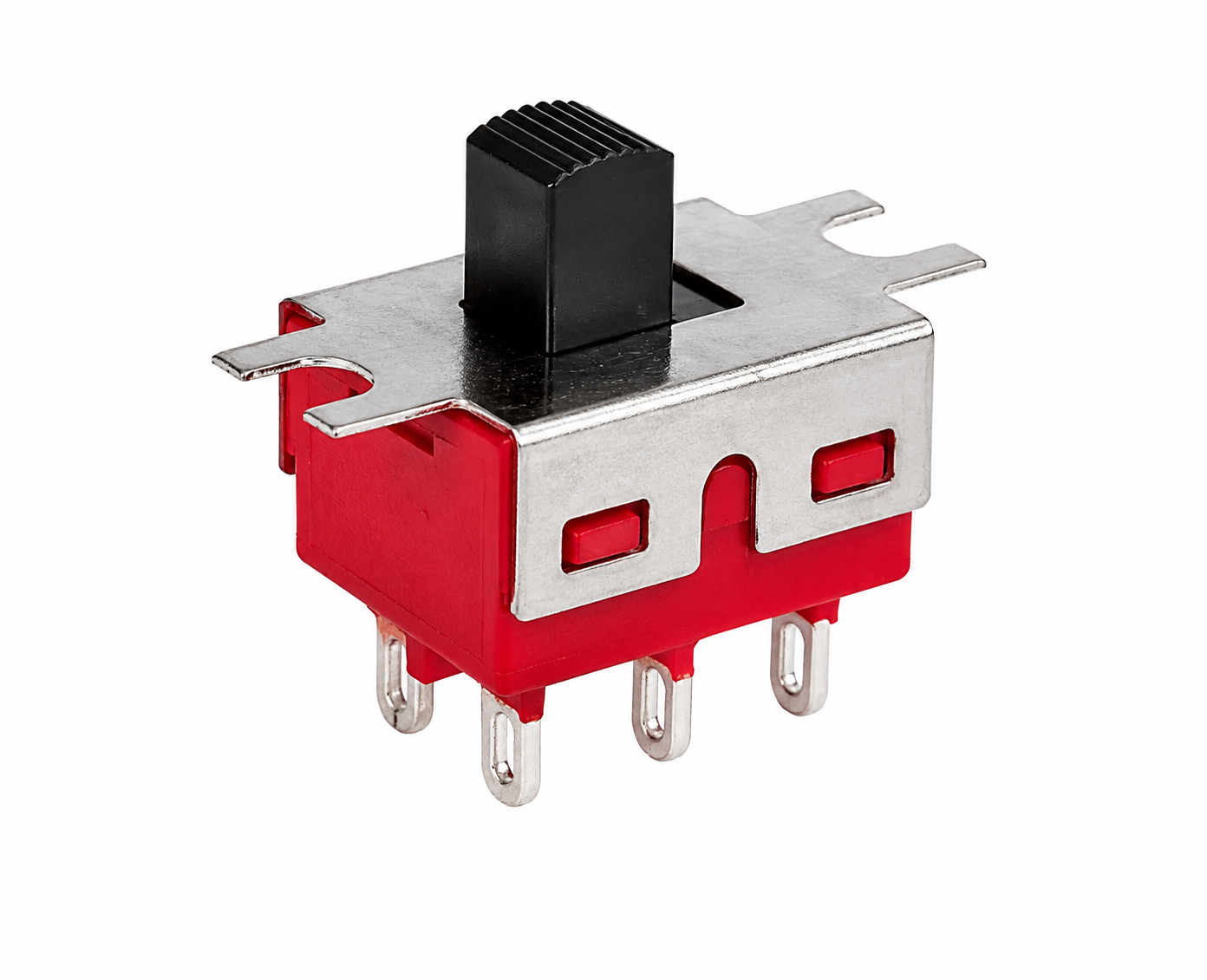

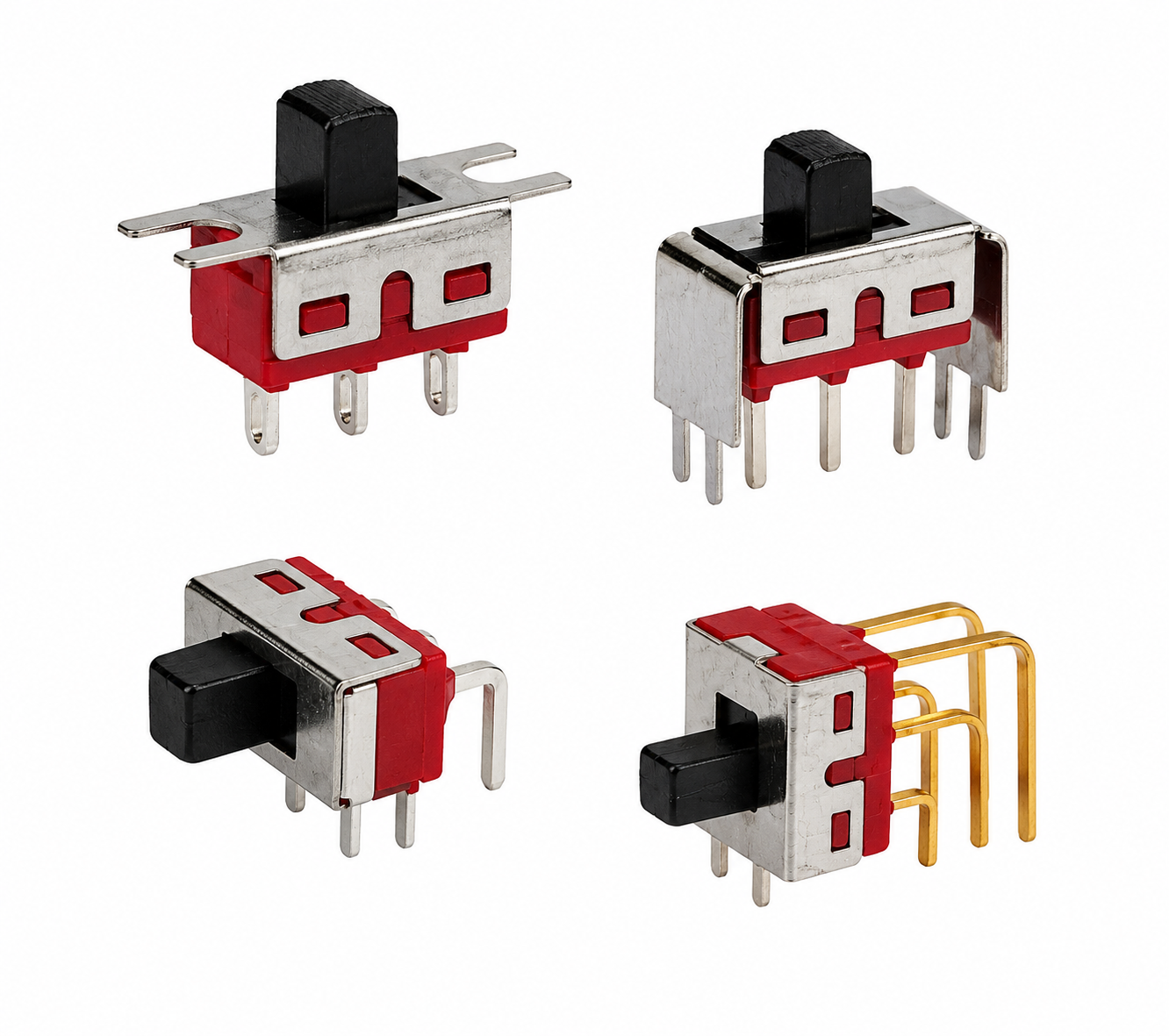

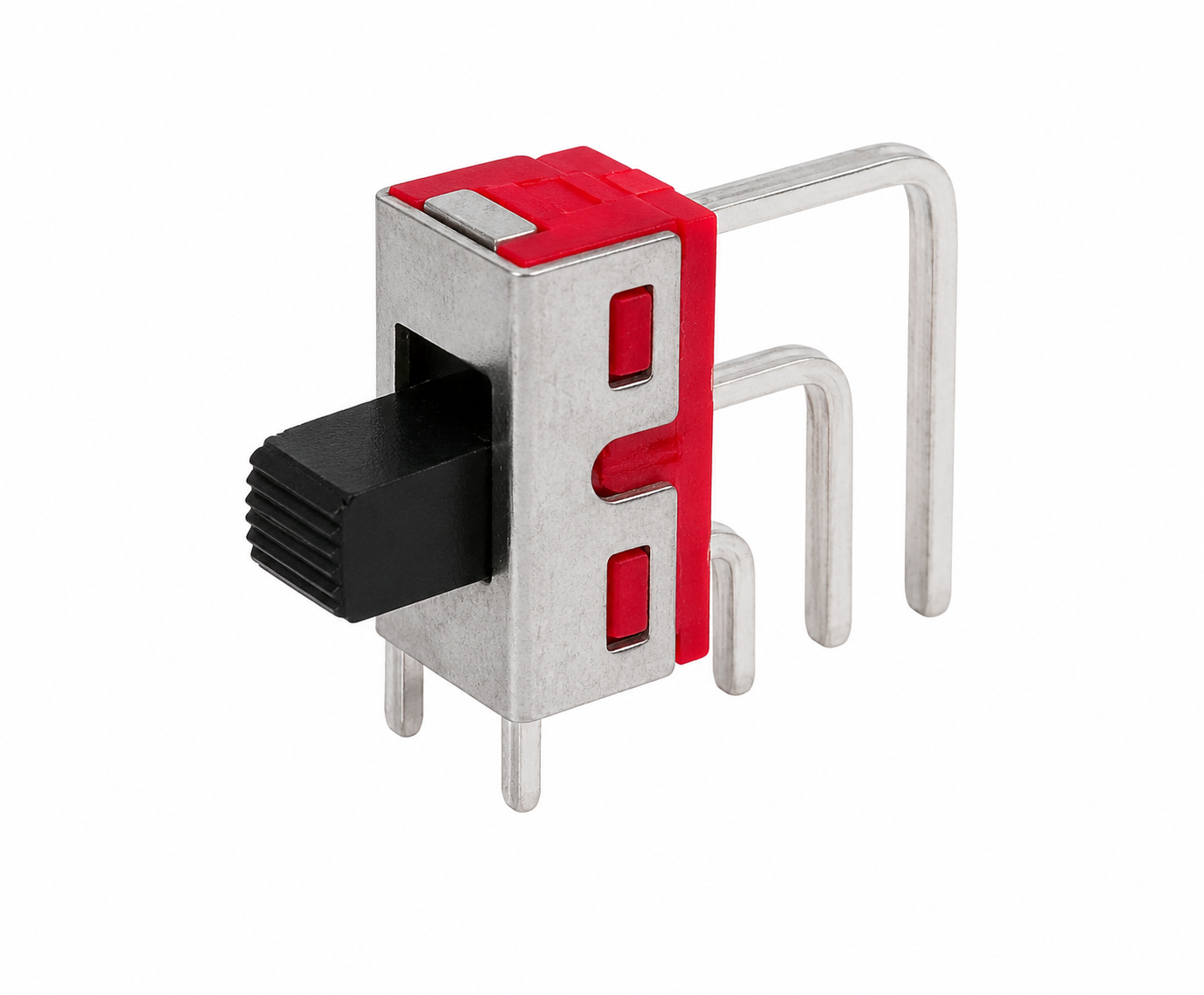

The 5M series of slide switches has a maximum rating of 5A and is available in SPDT, DPDT, and other configurations. With seven different lever sizes and a variety of colors, they can be customized to meet specific design requirements. The switches themselves offer various mounting options, including 90-degree or 180-degree vertical and horizontal orientations. Even better, they are available in both vertical and horizontal orientations.
Key Features
High current capacity: Rated up to 5A, suitable for higher‑power circuit control applications.
Flexible circuit configurations: Available in SPDT and DPDT options to meet single‑pole or double‑pole control requirements.
Highly customizable appearance: Features 7 actuator sizes and a variety of colors to meet design needs for both visual aesthetics and operation.
Diverse terminal orientations: Offered with 90° or 180° vertical and right‑angle terminal designs to accommodate different PCB layouts.
Flexible mounting orientations: Available in vertical and horizontal (side‑operated) configurations for enhanced installation and application versatility.
Applications
Instruments and testing equipment.
Computers and peripherals
