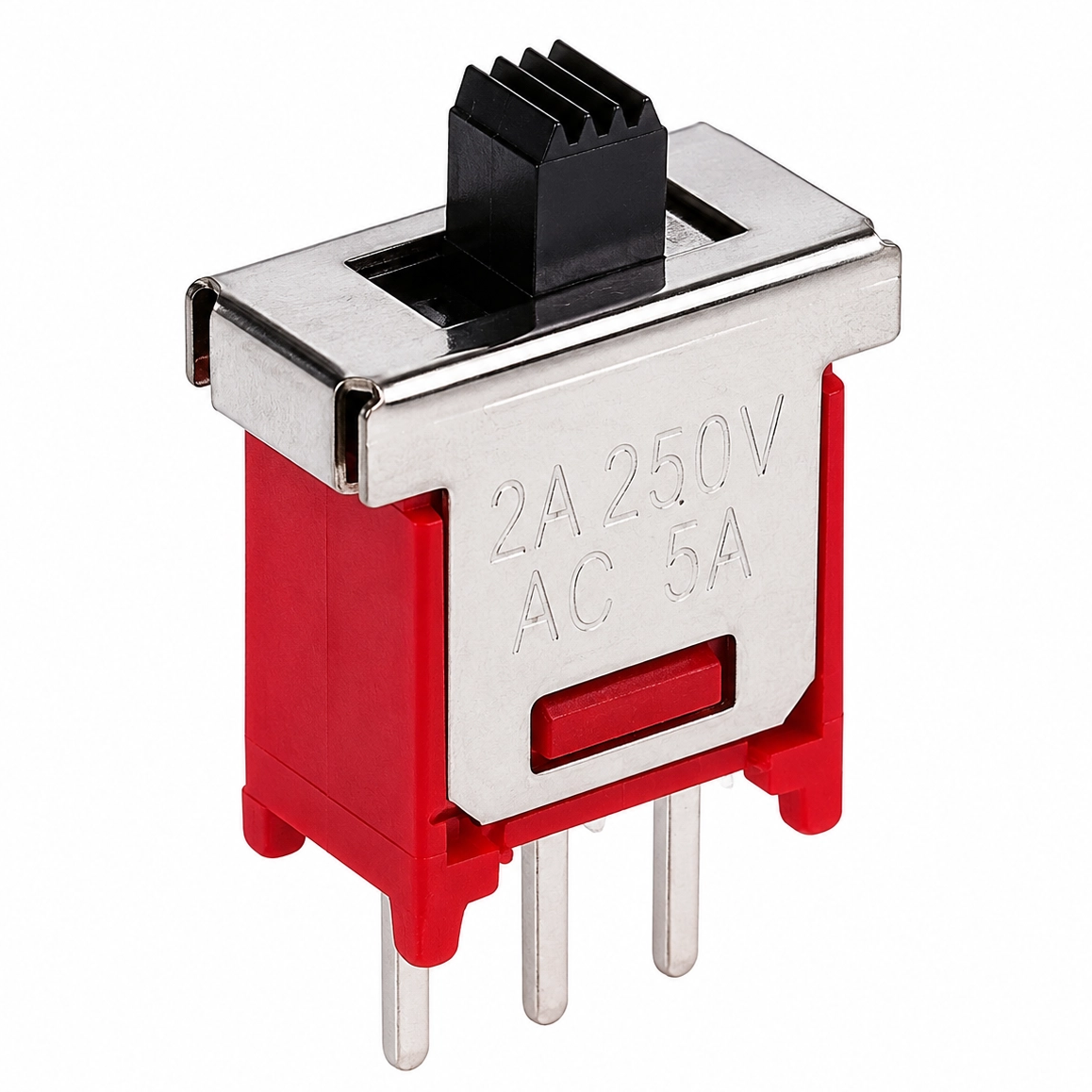

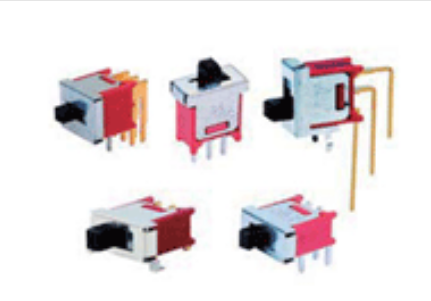

5F Series

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Technical Parameters

Specification
Rating	5 Amps with resistant load @ 120VAC or 28VDC 2 Amps with resistant load @ 250VAC 0.4 Volt - Amps ( VA ) max. @ 20V max. ( AC or DC )
MECHANICAL LIFE:	30,000 make-and-break cycles.
Contact Resistance	20 mΩ max. (initial value) @ 2-4VDC 100mA for both silver and gold plated contacts.
Dielectric Strength	1,000 Vrms min.@sea level. (initial value)
OPERATING TEMPERATURE:	-40°C to 85°C.(std) -30°Cto 85°C(SMT)
Insulation Resistance	1,000 MΩ min./1000VDC

Materials
ACTUATOR:	Nylon, black std.
HOUSING：	Stainless steel or phosphor bronze, tin plated.
CASE:	Diallyl phthalate (DAP) (UL94v-0).
CONTACT：	Brass or copper with silver or gold plated.
TERMINALS:	Copper with silver or gold plated.

Product Description

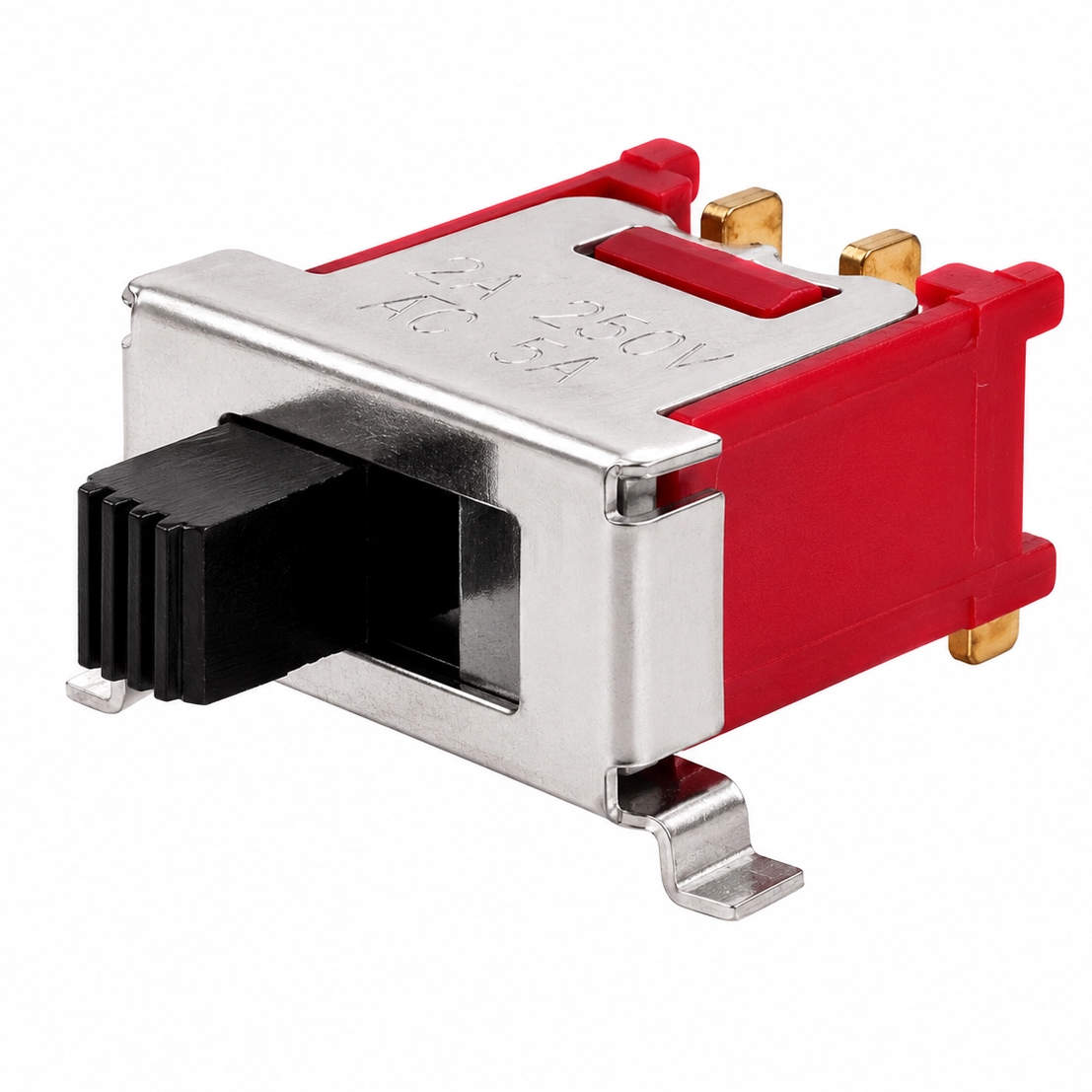

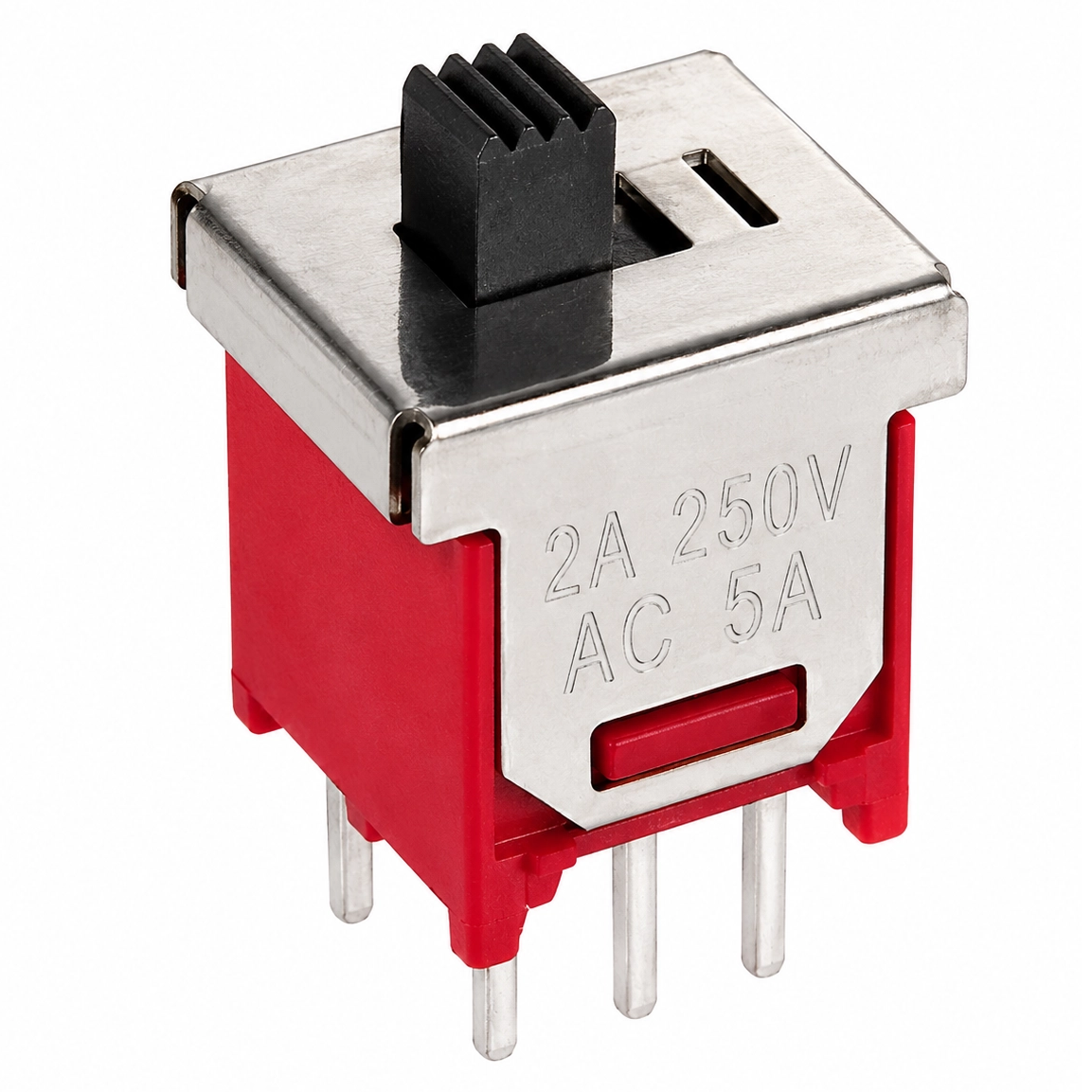

The 5F Series reinforced slide switches have a maximum rating of 3A and are available in SPDT, DPDT, and other configurations. Handle lengths of 3.1 mm and 5.0 mm are available, and terminal options include PC terminals, extended terminals, bent terminals, and SMT terminals.

Key Features

Rugged construction: Designed for enhanced mechanical strength and durability, suitable for applications requiring higher reliability.
Moderate current rating: Rated up to 3A, balancing compact size with adequate load capacity.
Flexible circuit configurations: Available in SPDT and DPDT options to meet single‑pole or double‑pole control requirements.
Selectable actuator length: Offered with 3.1mm and 5.0mm actuator heights to accommodate different operating space or tactile preferences.

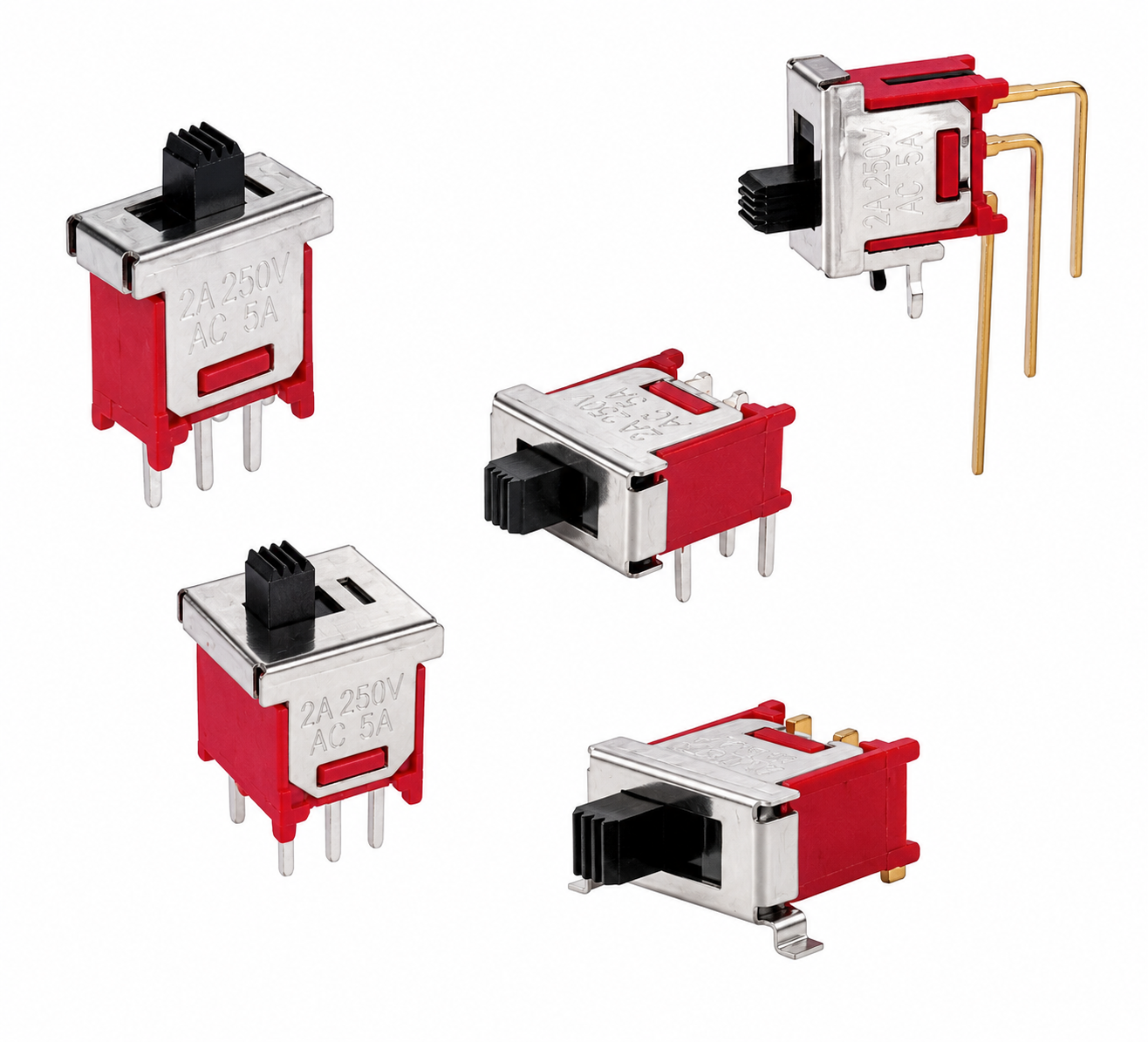

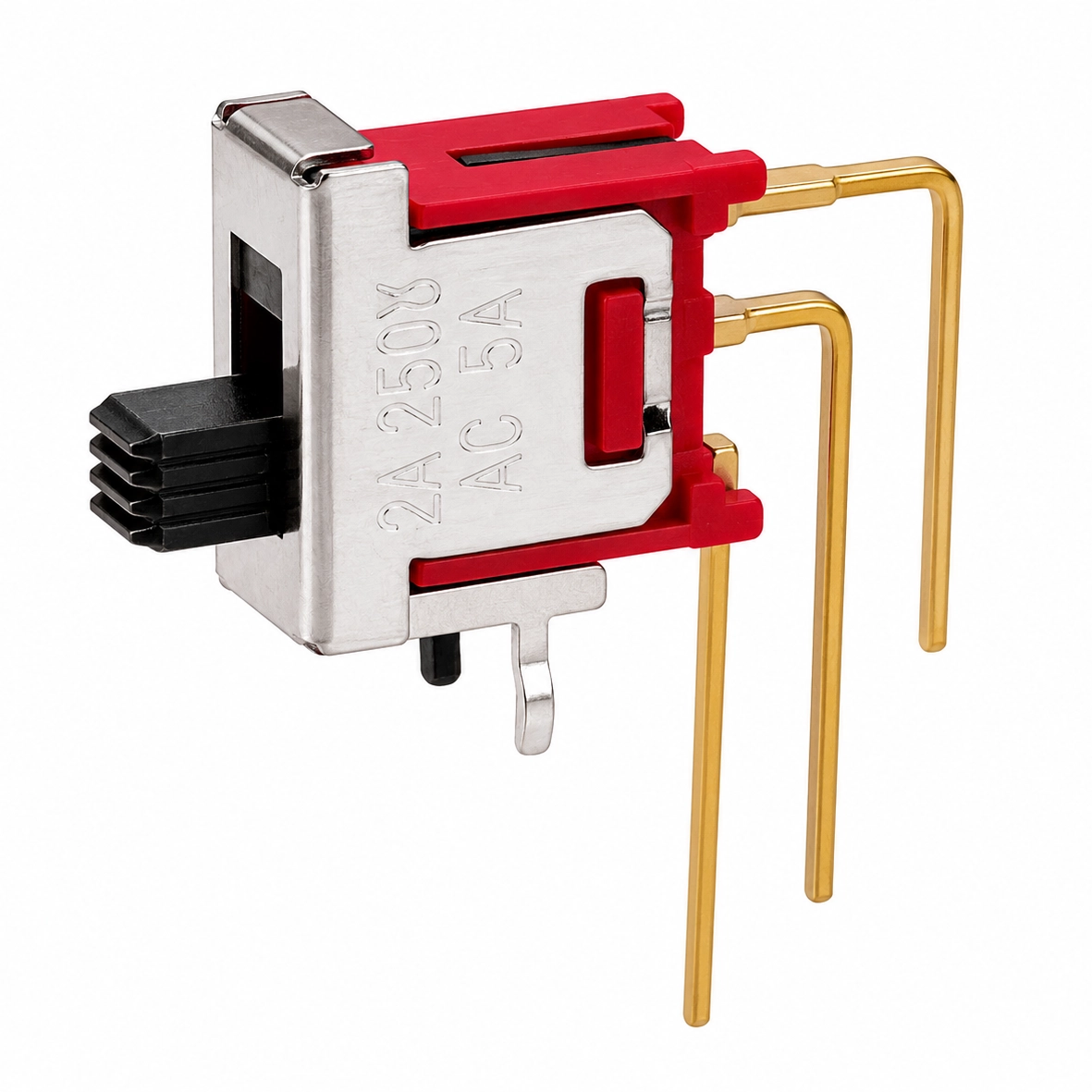

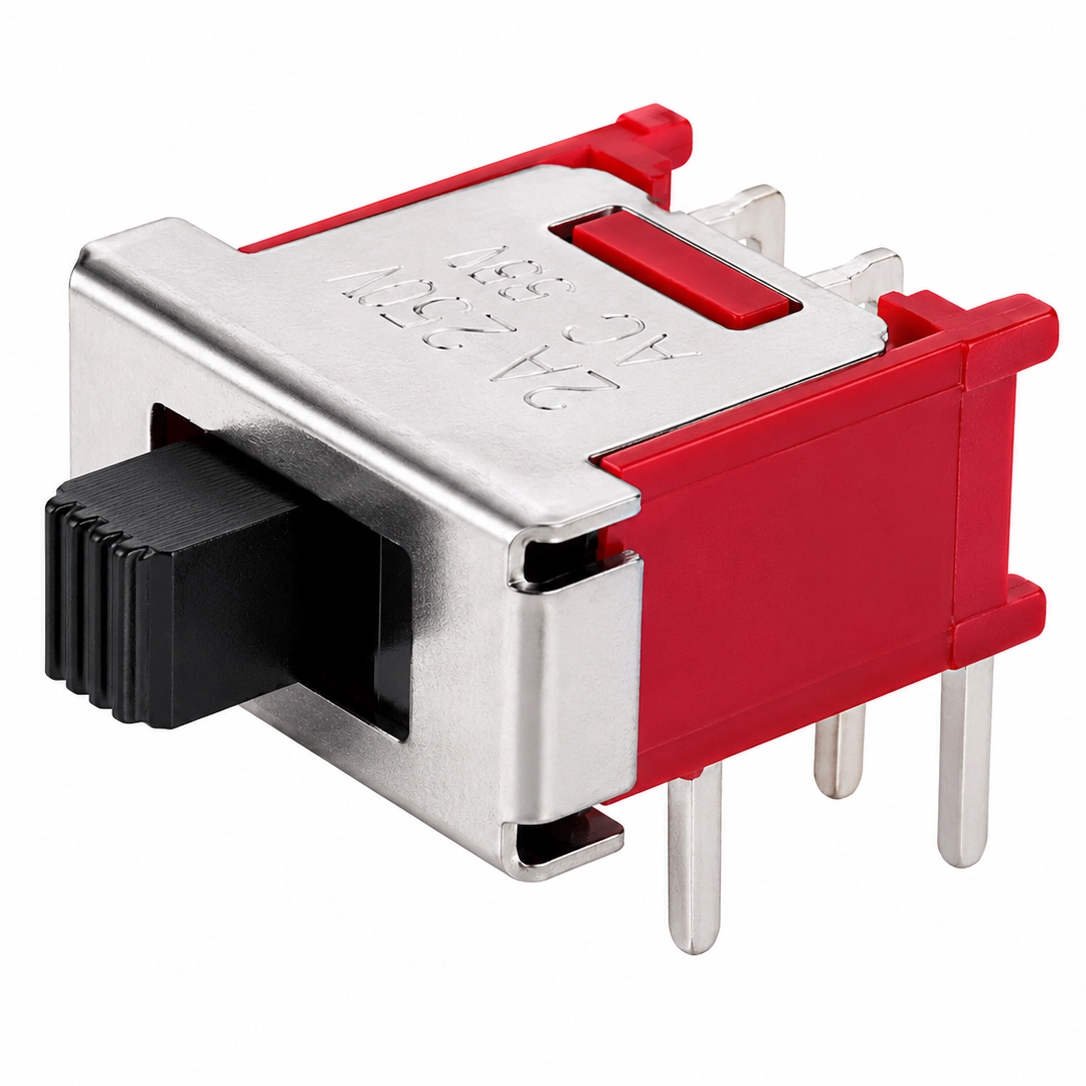

Versatile terminal options: Available with PC pins, extended pins, right‑angle pins, and SMT terminals to suit various PCB layouts and assembly processes.
