Installing a metal push button switch correctly is crucial for ensuring operational safety, reliability, and longevity, especially in industrial, commercial, and even residential applications. Many users face challenges such as unclear terminal pin functions, confusing wiring configurations, and the risk of short circuits during installation. This comprehensive guide provides a detailed, step-by-step approach to metal push button installation, covering essential tools, terminal identification, wiring methods, safety protocols, and troubleshooting. Additionally, it introduces Taclex Electronics (Shenzhen) Co., Ltd., a trusted manufacturer of high-quality switches, including metal push buttons, to help users select reliable components for their projects.
Before initiating the installation process, it is imperative to gather all necessary tools and materials to avoid delays, errors, and safety hazards. The selection of high-quality components is particularly important, as substandard parts can lead to malfunction or even equipment damage. Taclex Electronics (Shenzhen) Co., Ltd., established in March 1997, is a professional manufacturer dedicated to the research, development, and manufacturing of switches. The company specializes in producing various types of rotary switches, micro switches, and tactile switches, and has gradually expanded into other precision switch products such as slide switches, detection switches, toggle switches, rocker switches, push button switches, knob switches, key switches, and illuminated switches. Leveraging its accumulated R&D capabilities, production technologies, and market experience, Taclex is committed to providing customers with high-quality products, fast delivery, and professional technical support and services, making its TACLEX brand a reliable choice for metal push button switches.

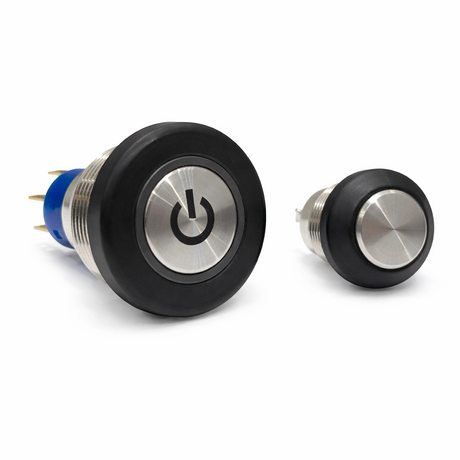

Metal Push Button Switch: The primary control device, available in momentary (active only when pressed) or latching (remains in the selected state until pressed again) types. Sizes typically range from 16mm to 22mm, with voltage ratings commonly at 12V or 24V DC (some models support AC). Many TACLEX metal push buttons feature LED indicators for visual status feedback, making them suitable for various application scenarios.
Power Supply: A battery or regulated DC adapter matching the push button’s voltage rating is required to ensure stable operation. Using a mismatched power supply can damage the switch or connected devices.
Electrical Wires: Insulated wires with an appropriate gauge (matching the required current) are essential. Color-coded and pre-tinned wires are recommended for easier identification and soldering.
Wire Stripper and Cutter: Used to remove wire insulation without damaging the core and trim wires to the required length, ensuring clean and secure connections.
Soldering Kit or Quick Connect Terminals: Soldering provides a permanent connection, while quick-connect terminals (or spade connectors) offer removability. Heat-shrink tubing is recommended to cover exposed joints for added safety.
Precision Screwdriver: For fastening the push button’s screw terminals and securing the switch to the mounting surface or electrical box.
Multimeter: Used to check voltage, circuit continuity, and pin functionality, ensuring connections are correct before final use.
Drill and Bits: For creating a mounting hole in the panel, with the bit diameter matching the push button’s specifications (usually 16mm to 22mm).
Panel or Mounting Surface: A rigid, flat surface that can securely hold the push button, with a smooth-edged hole to prevent wire damage.
Proper identification of terminal pins is a critical step before wiring, as incorrect pin connections can lead to switch malfunction or short circuits. Most vertically mounted metal push buttons have 2 to 5 terminal pins, with functions varying based on the switch model and features. TACLEX metal push buttons are clearly labeled with standard pin identifiers, simplifying the installation process for users.
COM (Common): The main terminal that serves as the center of the circuit, typically connected to the power source. It acts as a pivot, linking to either the NO or NC pin depending on the desired function.
NO (Normally Open): Allows current flow only when the button is pressed, making it ideal for on/off actions (e.g., doorbells, buzzers). The circuit closes when the button is pressed and opens when released.
NC (Normally Closed): The opposite of NO, allowing current flow when the button is not pressed and stopping flow when pressed. This is useful for systems that require power cutoff when the button is activated.
LED+ and LED-: Exclusive to illuminated push buttons (such as many TACLEX models), these pins power the LED indicator. LED+ connects to the positive voltage line, while LED- connects to the ground or negative terminal.
If terminal pins are not clearly labeled, refer to the product manual (provided with all TACLEX switches) for guidance. A multimeter can also be used to test pin functionality: for NO pins, continuity is detected only when the button is pressed; for NC pins, continuity is detected when the button is released; COM pins maintain continuity with either NO or NC depending on the button state.
The wiring configuration of a metal push button depends on whether it is a momentary or latching switch, as each type serves distinct purposes. TACLEX offers both momentary and latching metal push buttons, with clear specifications to help users select the right switch for their application and simplify wiring.
Momentary switches activate only when pressed, making them suitable for temporary operations (e.g., doorbells, reset buttons). Follow these steps for wiring:
Connect the positive wire from the power supply to the COM terminal of the switch.
Connect the NO terminal to the positive input of the device being controlled.
Connect the negative wire from the power supply to the negative terminal of the device.
For illuminated momentary switches (e.g., TACLEX LED-equipped models), connect LED+ to the positive voltage line and LED- to the ground or negative terminal.
When the button is pressed, the circuit closes, allowing current to flow to the device; releasing the button opens the circuit, stopping current flow.
Latching switches remain in the on or off state after being pressed, making them ideal for applications requiring sustained operation (e.g., lights, power tools). Wiring steps are as follows:
Connect the positive (+) terminal of the power supply to the COM terminal of the switch.
Connect the NO terminal to the power input of the device.
Connect the negative (-) terminal of the power supply to the negative terminal of the device.
For illuminated latching switches, connect LED+ to the positive voltage line and LED- to the ground or negative terminal.
A single press activates the switch (closing the circuit), and a second press deactivates it (opening the circuit), mimicking the behavior of a standard light switch.
Following a systematic approach ensures safe and correct installation. This process applies to most panel-mounted metal push buttons, including TACLEX models, and can be completed by both beginners and experienced users with proper attention to detail.
Turn Off Power: Verify that the power supply to the circuit is completely shut off (unplug the adapter or turn off the circuit breaker). Use a multimeter to confirm no voltage is present, ensuring personal safety and preventing short circuits.
Prepare the Mounting Surface: Mark the location for the push button on the panel, then drill a hole with the correct diameter (match the switch’s specifications, typically 16mm to 22mm). Smooth the edges of the hole to avoid damaging wires.
Insert the push button into the hole from the front of the panel.
Secure the switch using the mounting nut provided (included with all TACLEX metal push buttons). Ensure the button is centered and firmly fastened; if loose, tighten the nut or add a washer for stability.
Identify the terminal pins using the switch label or manual (TACLEX switches feature clear labeling for ease of use).
Strip the ends of the wires (1-2mm of insulation) using a wire stripper, then connect them to the appropriate terminals using soldering or quick-connect terminals. Ensure no exposed wire is left to prevent short circuits.
Double-check all connections to ensure correct polarity (especially for LED-equipped switches) and that wires are securely fastened.
Restore power to the circuit and test the push button. Verify that the device operates as expected (temporary activation for momentary switches, toggle activation for latching switches) and that the LED (if present) illuminates correctly.
Organize wires using cable ties, sleeves, or clips to prevent tangling and reduce the risk of short circuits over time. This also improves the overall aesthetics and reliability of the installation.
Adhering to safety protocols is essential when working with electrical components. Additionally, understanding common issues and their solutions can help resolve problems quickly and avoid costly damage. TACLEX provides professional technical support to assist users with any installation or troubleshooting needs.
Always turn off power before working on the circuit to prevent electric shock.
Use insulated tools designed for electrical work, and ensure they are not damaged or worn.
Read the product manual (provided by TACLEX) thoroughly to understand switch specifications and wiring requirements.
Avoid installing switches in wet or damp areas unless they are rated for such environments (TACLEX offers waterproof metal push buttons for harsh conditions).
Wear safety goggles and gloves to protect against small shocks or debris.
Unresponsive Button: Check the power supply and wiring connections. Ensure the correct pins (COM, NO/NC) are used and that there are no loose or stray wires. Test the switch with a multimeter to verify functionality.
LED Not Illuminating: Confirm the LED+ and LED- pins are connected to the correct polarity. Check the power supply voltage to ensure it meets the LED’s requirements. If the issue persists, contact TACLEX technical support.
Device Remains Active/Inactive: This indicates miswiring. For momentary switches, the device should only activate while the button is pressed; for latching switches, it should toggle with each press. Recheck the wiring configuration against the manual.
Loose Button: Tighten the mounting nut or add a washer to secure the switch to the panel. If the nut is missing, contact TACLEX for replacement parts.
Installing a metal push button switch is a straightforward process when following the correct steps, using high-quality tools and components, and adhering to safety protocols. By understanding terminal pin functions, selecting the right wiring configuration, and following the step-by-step installation guide, users can ensure a safe and reliable installation. Taclex Electronics (Shenzhen) Co., Ltd. offers a wide range of high-quality metal push buttons (under the TACLEX brand) and other precision switches, backed by 27+ years of manufacturing experience, professional technical support, and fast delivery. Whether for industrial automation, smart homes, or commercial applications, TACLEX switches provide the durability and performance needed for any project. For more information on TACLEX products or technical assistance, contact the company directly.
