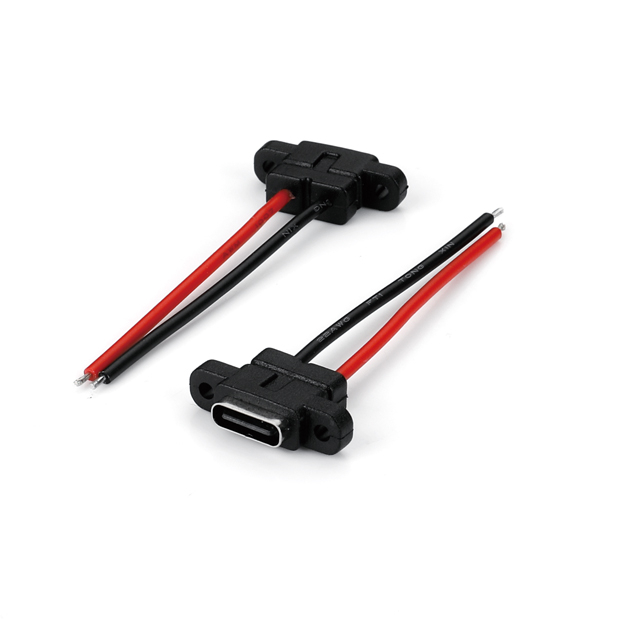

TYPE-C 2P Waterproof Solder Type with Wire Screw Hole

IPX7、Female Connector Solder Type with Wire and Screw Hole
Availability:
Quantity:
Inquiry Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Technical Parameters

Specification
CURRENT RATING:

3 A for the VBUS pin

 1.25 A for the GND pin
VOLTAGE RATING: 5 V
Contact resistance: 40 mΩ max, with a tolerance of ±10 mΩ.
Withstand Voltage: 100 VAC
INSULATION RESISTANCE: At least 100 MΩ
Insertion Force: 0.5–2.0 kg
Extraction Force: 0.6–2.04 kg
Cycles: 10000 CYCLES
OPERATING TEMPERATURE: -20℃~+85℃
WATERPROOF: IPX7
