Technical Parameters
| Specification |
| RATING: | Ith 5A/250VAC. Resistive load 3A/250VAC Ith 5A/250VAC. Resistive load 5A/125VAC. |
| ELECTRICAL LIFE: | 100, 000 MAKE-AND-BREAK CYCLES AT FULL LOAD 30, 000 MAKE-AND-BREAK CYCLES AT FULL LOAD. |
| MECHANICAL LIFE: | SELF-LOCK 100, 000 CYCLES. |
| INSULAT ION RESISTANCE: | 100MΩ MIN AT 500VDC |
| DIELECTRIC STRENGTH: | 2, 500V RMS@sea level. |
| CONTACT RESISTANCE: | 50mΩ MAX. @1A 6VDC (initial value). |
| OPERATING TEMPERATURE: | -25C to 70℃ (no iceing or no condensation). |
| OPERATION Force: | Push to lock: 25N MAX Pull to reset: 20N MAX Turn to reset: 0. 3 N . m MAX |
| INGRESS PROTECTION: | IP65 |
| TORQUE: | ABout 1~3N . m. |
| TRAVEL | ABOUT 4.9mm. |
| Material |
| BUSHING: | Aluminum alloy. |
| BASE: | PA66 (UL94 V-0) |
| ACTUATOR: | ABS/PC. |
| SPRING: | Spring steel. |
| SEALING: | Silicone. |
| 0-Ring: | Silicone. |
TERMINAL:
| Brass, Nickel plated, Tin plating. |
| CONTACT: | Brass, Coin silver, Gold plated. |
| INNER ASSEMBLY: | POM. /PA66. |
Product description

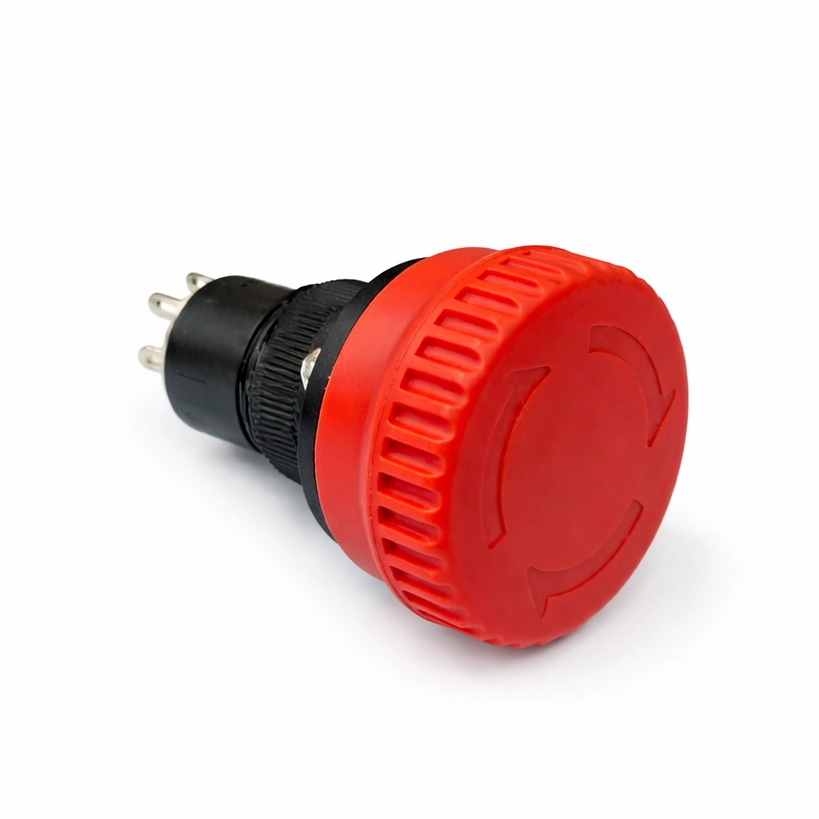

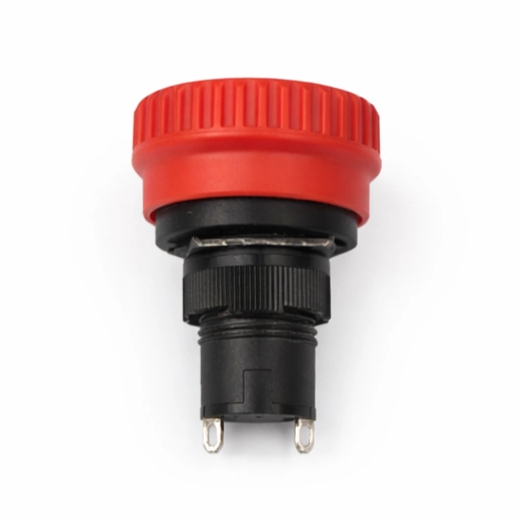

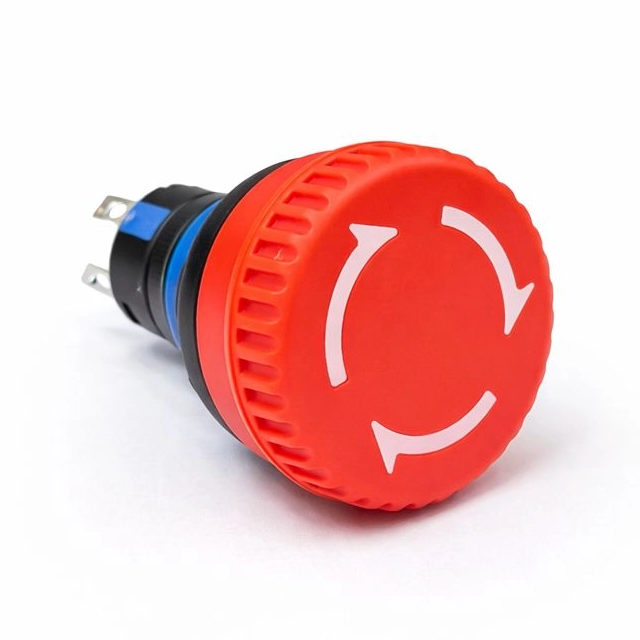

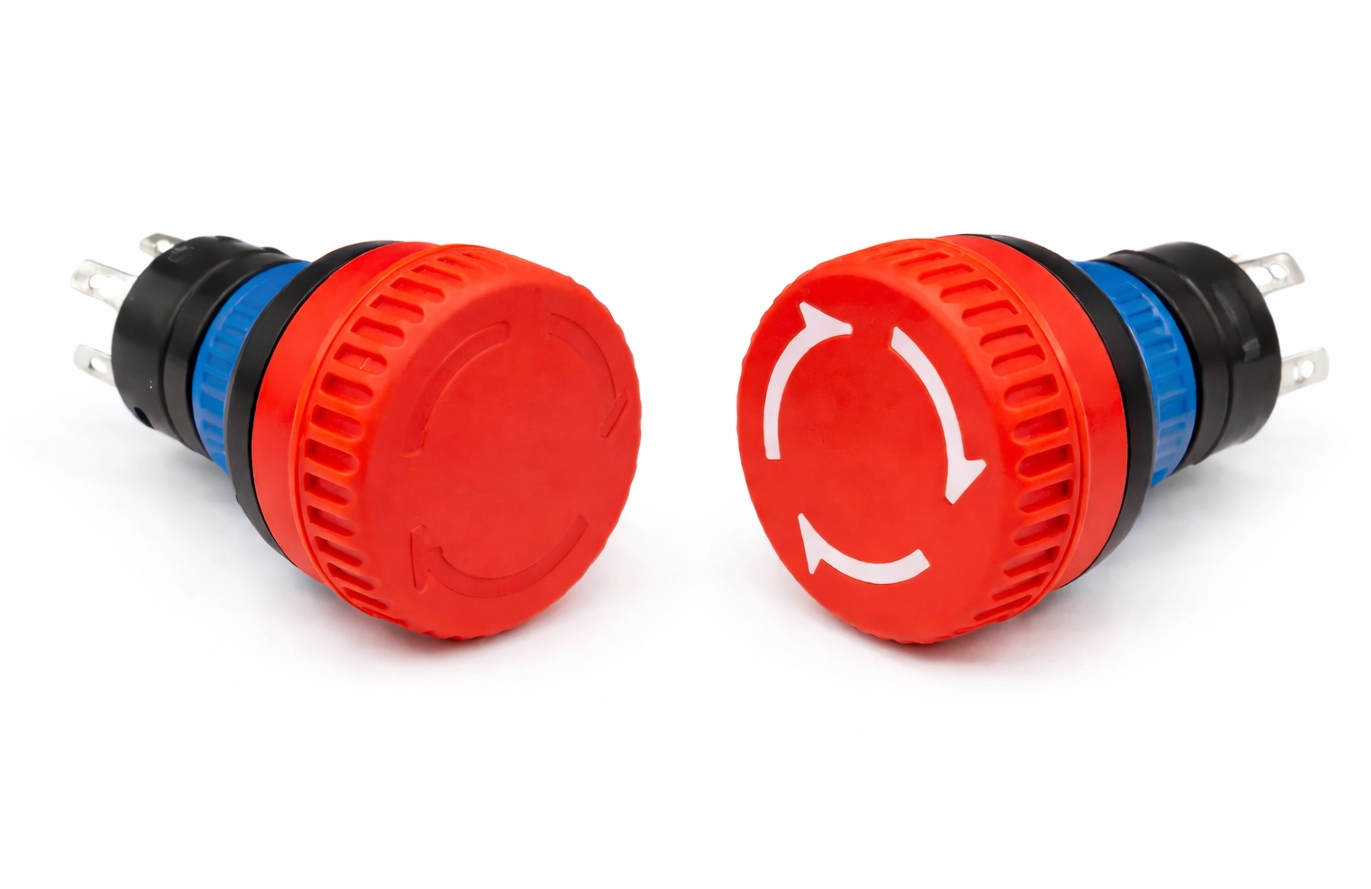

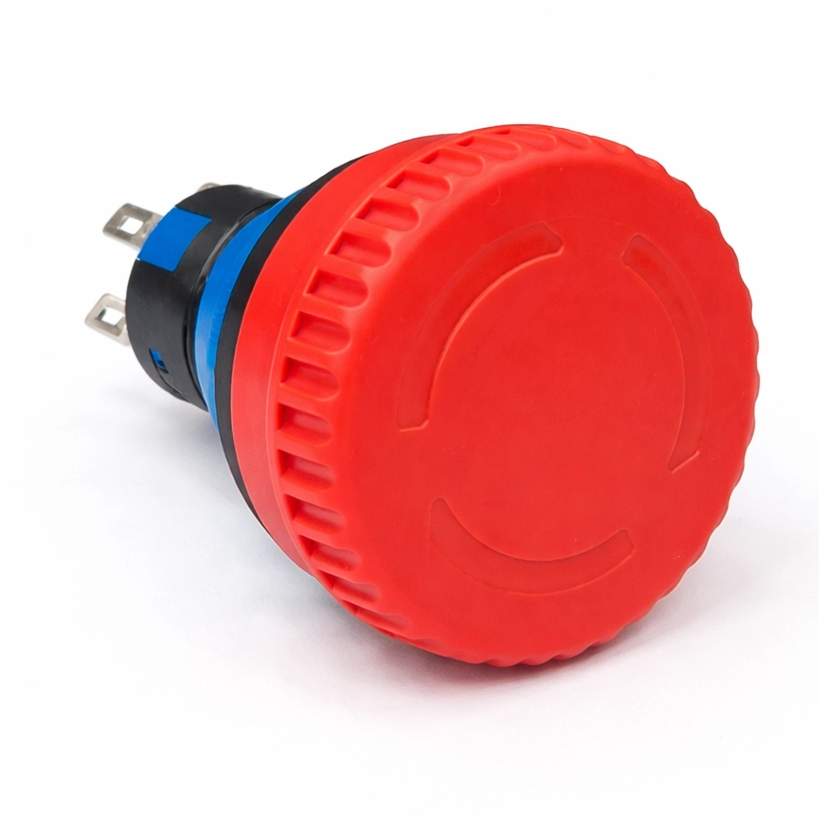

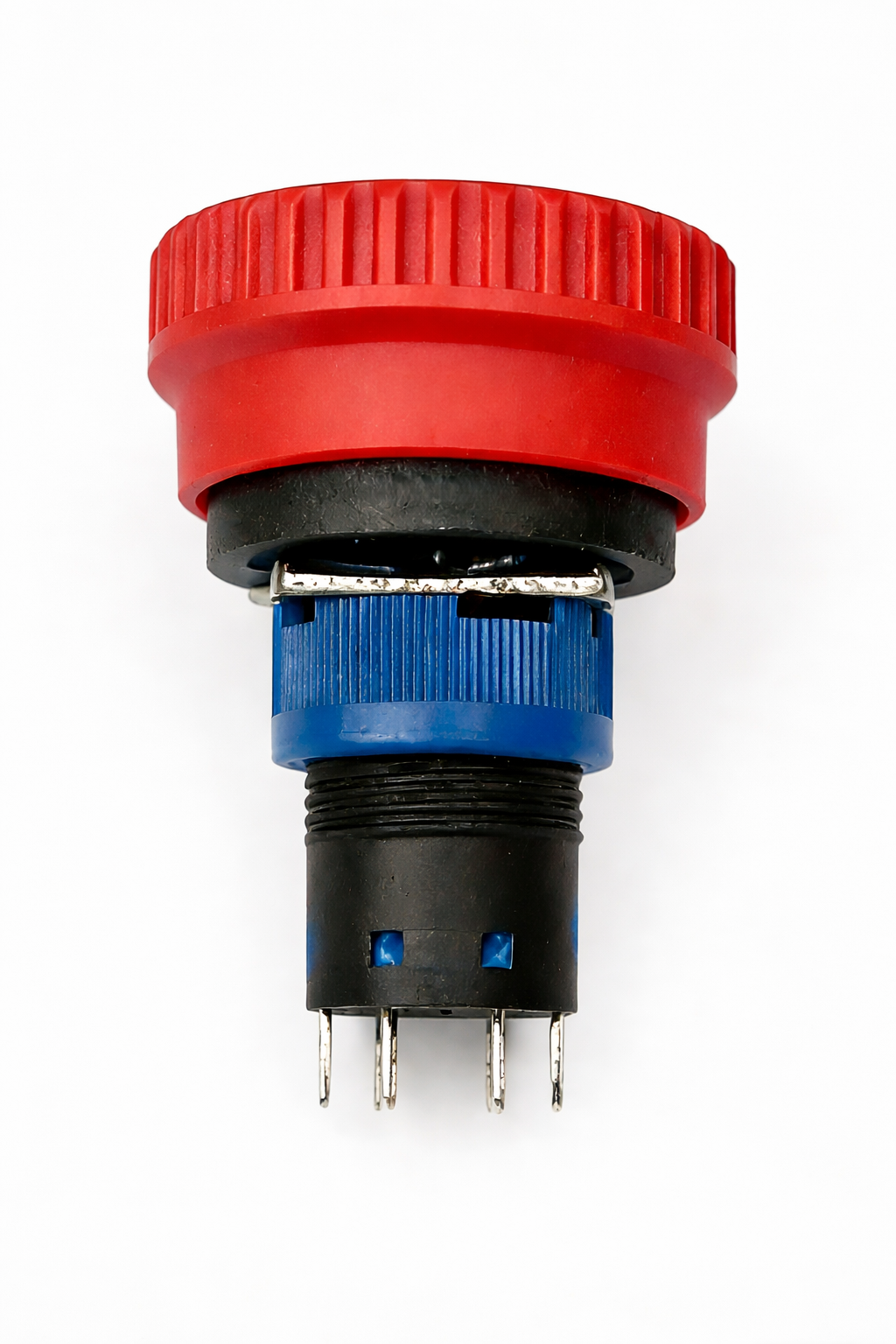

The ESP is an emergency stop switch with safety certification, available with or without a light, and in sizes of φ32 or φ40.
Product Advantage
Safety Certification
IP65
Product Uses
Medical equipment, industrial control equipment,
