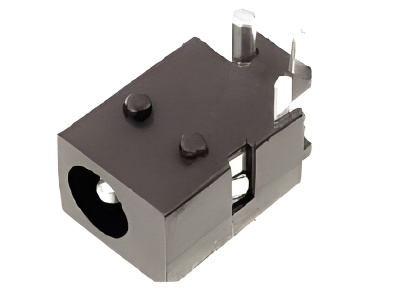

DC JACK DIP
SIZE:12.5.x8 H=6mm
SPECIFICATION
Rating: DC 30V 2A
Contact resistance:≤50 mΩ
Insulation resistance:≥100MΩ(DC500V)
Withstand voltage: 500VAC
Insertion and Extraction force: 3-30N
Life test: 5,000 cycles
Operation temperature range:-20℃ to +70℃
Preservative temperature range: -40℃ to +85℃
Sign “▲”is importance dimension
