Product Advantage

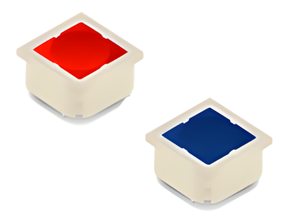

1. Diverse Color Options: Offers a wide range of classic colors including blue, green, yellow-green, yellow, orange, red, and white, catering to various customer preferences and aesthetic requirements. Colors can be matched according to application scenarios or brand styles.
2. Variety of Cover Configurations: Provides multiple styles and materials for cover options, allowing flexible selection based on specific application needs and design preferences. This integration of functionality and aesthetics enhances the product's overall and practicality.
3. Professional Application Areas: Widely used in server systems, network modems, data storage devices, professional audio modules, and various office automation equipment, delivering reliable performance and stability for high-end electronic devices in complex environments.
Technical Parameters
| Specification | |
| Rating | 50mA,12V DC |
| Operating temperature | -40 °C to 85 °C |
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. 100V DC |
| Operating Life | 300,000 cycles |
| Dielectric Strength | 250V AC / 1 minute |
| Travel | 0.25mm |
| Operating Force | 160±50gf / 180±50gf |
Product Uses
Used in audio amplifiers, medical devices, and network communication equipment.
Product Operate Guide
