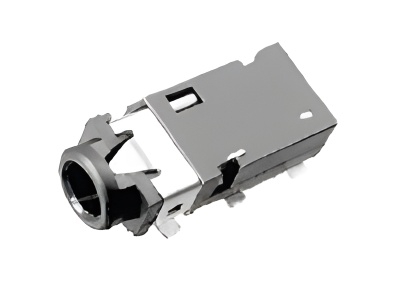

2.5PHONE JACK SMT 6PIN
SIZE:12x5 H=3.2mm
SPECIFICATION
Rating: DC 12V 1A
Contact resistance:≤50 mΩ
After life test: ≤100 mΩ
Insulation resistance:≥100MΩ(DC500V)
After life test: ≥50 mΩ
Withstand voltage: 500VAC
Insertion and Extraction force: 3-25N
Life test: 5,000 cycles
Operation temperature range:-20℃ to +70℃
Preservative temperature range: -40℃ to +85℃
Sign “▲”is importance dimension
