Rating:125/250VAC 1-20A

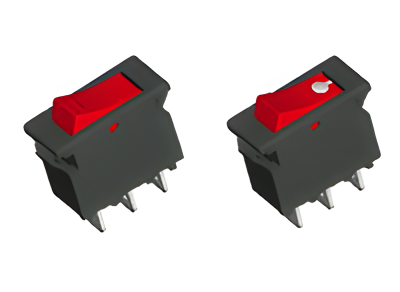

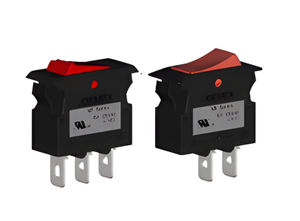

Thermal Circuit Breakers
SPECIFICATIONS
Rated voltage: AC125/250V DC50V
Rated current: 1-20 A
Interrupt Capacity: 1000A
Dielectric strength: AC 1500V (1min)
Insulation resistance: ≥100MΩ,500VDC
Resettable Overload Capacity: Six times rated current(1-4A)
Ten times rated current(5-20A)
Switch Endurance Cycling: over 6,000 operations
At 100% of rating
Weight: Approx 10.5g
